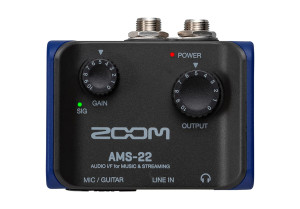

Zoom AMS-22 - Audio Interface for Music & Strea...
Beschreibung
For Solo Musicians AMS-22 | 2-In, 2-Out Perfect for mobile recording or streaming, the AMS-22 includes an XLR/TRS combo input, plus a stereo line in. It also includes a headphone output and 2 TRS outputs for external monitors. Quick Control With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software. Onboard Monitoring Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software. Loop It Back The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track. POWER OPTIONS All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone. PLUG IT IN… Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices. … AND PERFORM The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms. In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon. In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand. WHAT’S IN THE BOX AMS-22 USB Audio Interface USB-C Cable Quick Tour Technical Specification Input and Output Channels Number of input channels Mono (MIC/GUITAR) 1 Stereo (LINE IN) 1 Number of output channels Stereo (TRS) 1 Stereo (PHONES) 1 Connectors MIC/GUITAR Type XLR/TRS combo jack (XLR: 2 HOT, TRS: TIP HOT) Input Gain +8 - +54 dB (MIC) / +8 - +54 dB (GUITAR) Input impedance XLR: 2 kΩ (MIC) TS: 1 MΩ (GUITAR) Maximum input level XLR: +0.6 dBu (MIC) TS: +11 dBu (GUITAR) Phantom power +48 V OUTPUT (standard phone jacks) Type TRS phone jacks (impedance balanced) Maximum output level −2 dBu (at 0 dBFS) Output impedance 100 Ω OUTPUT (headphone jack) Type 3.5mm stereo mini jack 20 mW + 20 mW (32 Ω load) Output impedance 10 Ω USB USB Type-C (audio interface function) • Use a USB cable that supports data transfer. USB bus power is supported. DC 5V USB Type-C (for power supply) LINE IN Type 3.5mm stereo mini jack Input impedance 20 kΩ Maximum input level +1.5 dBu Frequency Response 44.1 kHz: +0/−2 dB (20 Hz – 20 kHz) 96 kHz: +0/−3 dB (20 Hz – 40 kHz) Equivalent Input Noise –120 dBu or less (IHF-A) at +54dB/150Ω input Audio Interface Input and output channels Recording: 2 channels Playback: 2 channels Sampling frequencies 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz Bit Depth 24-bit Interface USB 2.0 Class USB Audio Class 2.0 Power AC adapter (ZOOM AD-17): DC 5 V/1A • USB bus power is supported. Rated Current USB bus power / DC 5 V power supply: 170 mA Power Consumption 1.8 W maximum Dimensions 68.0 mm (W) × 57.7 mm (D) × 46.0 mm (H) Weight (unit only) 85 g Note: 0 dBu = 0.775 Vrms
